9341-8i 레이드 카드를 구했다 SAS 셋팅하는데 SAS 12GB 지원이라 12GB 지원 하는 레이드 카드중에 그나마 가격이 저렴한 DELL OEM 중고 으로 구매 했다.
부팅 할때 보니깐 펌웨어 버전이 2014버전이여서 업그레이드가 필요 할것 같아서 찾아봤다.
LSI 계열이라 그런지 설치 하는게 비슷하다.
MSM(MegaRAID Storage Manager) 프로그램을 설치를 해야 하는데
https://support.lenovo.com/fi/ko/downloads/ds041825
그래픽 기반 매니지먼트 (MSM) 유틸리티 LSI SWR / HWR for RHEL / SLES Linux & Windows OS - ThinkServer Systems - Len
support.lenovo.com
대충 레노버 사이트에서 구 했다 찾아보면 뭐 다른게 있겠지만.. 귀찮으니 구글에서 찾아서 바로 나오는걸로
ul_avago_msm_17.05.01.00_linux.tgz
파일 다운 받아서 압축 풀면
MSM_Linux-x64.zip MSM_linux-x86.zip
32bit, 64bit 나오는데 자신의 환경에 맞는 버전 압축 풀어주자.
마지막까지 압축 풀어주면 disk 폴더 생기는데 그곳에가서 ./install.csh 해주면 끝이다.
# ./install.csh
STOP! BEFORE YOU INSTALL OR USE THIS SOFTWARE
Carefully read this Software License Agreement. Installing or using this Software indicates that you agree to abide by this Software License Agreement. If you do not agree with it, promptly return the Software and we will refund the purchase price.
Software License Agreement
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION OF THE SOFTWARE
THE SOFTWARE AND DOCUMENTATION PROVIDED HEREIN IS PROPRIETARY TO AVAGO TECHNOLOGIES AND ITS LICENSORS. AVAGO TECHNOLOGIES IS WILLING TO LICENSE THE SOFTWARE AND DOCUMENTATION TO YOU ONLY UPON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS CONTAINED IN THIS SOFTWARE LICENSE AGREEMENT. BY USING THIS SOFTWARE, YOU, THE END-USER, AGREE TO THE LICENSE TERMS BELOW. IF YOU DO NOT AGREE TO THESE TERMS, YOU MAY NOT USE THE SOFTWARE.
1. Grant of License
Conditioned upon compliance with the terms and conditions of this Software License Agreement (Agreement), Avago Technologies (AVAGO) grants you, the original licensee, a nonexclusive and nontransferable limited license to use (including installation on multiple computers) for your internal business purposes the Software and the Documentation, Permitted Use
2. License Conditions; Confidentiality
The Software and Documentation are confidential information of AVAGO and its licensors. Except as expressly permitted herein, you may not disclose or give copies of the Software or Documentation to others and you may not let others gain access to the same. You may not post the Software or Documentation, or otherwise make available, in any form, on the Internet or in other public places or media. You may not modify, adapt, translate, rent, lease, loan, distribute or resell for profit, or create derivative works based upon, the Software or Documentation or any part of thereof, but you may transfer the original media containing the Software and Documentation on a one-time basis provided you retain no copies of the Software and Documentation and the recipient assumes all of the terms of this Agreement. You may not reverse engineer, decompile, disassemble or otherwise attempt to derive source code from the Software except to the extent allowed by law.
3. No Warranty
YOU ACKNOWLEDGE THAT THE SOFTWARE AND DOCUMENTATION ARE LICENSED AS IS, AND AVAGO MAKES NO REPRESENTATIONS OR WARRANTIES EXPRESS, IMPLIED, STATUTORY OR OTHERWISE REGARDING THE SOFTWARE AND DOCUMENTATION. ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, NON-INFRINGEMENT, SATISFACTORY QUALITY, NON-INTERFERENCE, ACCURACY OF INFORMATIONAL CONTENT, OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW AND ARE EXPRESSLY DISCLAIMED BY AVAGO , ITS SUPPLIERS AND LICENSORS. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO A PERIOD OF THIRTY (30) DAYS FROM THE DATE OF RECEIPT BY THE ORIGINAL LICENSEE. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION.
4. LIMITATION OF LIABILITY AND REMEDIES
IN NO EVENT SHALL AVAGO OR ITS LICENSORS BE LIABLE TO YOU FOR ANY INDIRECT, CONSEQUENTIAL, EXEMPLARY, INCIDENTAL OR SPECIAL DAMAGES ARISING FROM THIS AGREEMENT OR THE USE OF THE SOFTWARE OR DOCUMENTATION (INCLUDING, WITHOUT LIMITATION, DAMAGE FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF GOODWILL, OR OTHER PECUNIARY LOSS), WHETHER RESULTING FROM AVAGO NEGLIGENCE OR OTHERWISE, EVEN IF AVAGO WAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVAGO MAXIMUM LIABILITY FOR ANY DAMAGES ARISING UNDER THIS AGREEMENT AND THE USE OF THE SOFTWARE AND DOCUMENTATION WILL NOT EXCEED AN AMOUNT EQUAL TO THE LICENSE FEES YOU PAID TO AVAGO FOR THE SOFTWARE AND DOCUMENTATION. THE LAWS OF SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY, AND THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
5. U.S. Government End User Purchasers
The Software and Documentation qualify as commercial items, as that term is defined at Federal Acquisition Regulation (.FAR.) (48 C.F.R.) 2.101, consisting of commercial computer software and commercial computer software documentation as such terms are used in FAR 12.212. Consistent with FAR 12.212 and DoD FAR Supp. 227.7202-1 through 227.7202-4, and notwithstanding any other FAR or other contractual clause to the contrary, you may provide to Government end user or, if this Agreement is direct, Government end user will acquire, the Software and Documentation with only those rights set forth in this Agreement. Use of either the Software or Documentation or both constitutes agreement by the Government that the Software and Documentation are commercial computer software and commercial computer software documentation, and constitutes acceptance of the rights and restrictions herein.
6. Term And Termination
You may terminate this Agreement at any time, and it will automatically terminate if you fail to comply with it. If terminated, you must immediately destroy the Documentation and the Software and all copies you have made.
7. Audit Rights
AVAGO shall have the right on reasonable notice, at its own cost and no more than once per year, directly or through its independent auditors, to inspect, examine, take extracts, and make copies from, your records to the extent reasonably necessary to verify your compliance with the terms and conditions of this Agreement. This right shall apply during the term of this Agreement and for one (1) year thereafter.
8. Export
You may not export this Software or Documentation, unless you have complied with applicable United States and foreign government laws.
9. General
You assume full responsibility for the legal and responsible use of the Software and Documentation. You agree that this Agreement is the complete agreement between you and AVAGO (and that any verbal or written statements that are not reflected in this Agreement and any prior agreements, are superseded by this Agreement). To be effective, any amendment of this Agreement must be in writing and signed by both you and AVAGO . Should any provisions of this Agreement be held to be unenforceable, then such provision shall be separable from this Agreement and shall not affect the remainder of the Agreement. This Agreement shall be governed by California law, not including its choice of law provisions. The United Nations Convention on the International Sale of Goods shall not be applied to this Agreement. All rights in the Software and Documentation not specifically granted in this Agreement are reserved by AVAGO or its licensors. The English language version of this Agreement shall be the official version. The terms and conditions of this Software License Agreement shall be binding upon you and your respective heirs, successors and assigns.
10. Survival
The provisions of Sections 2, 3, 4, 7, 8 and 9 shall survive any termination of this Agreement.
Press Y to accept the License Agreement :Y
Press 0 to exit from installation
Choose[1-11]:
(1) - Complete
This option will install all program features.
(2) - Client
This option will only install components required to remotely view and
configure servers.
(3) - StandAlone
This option will only install components required for local server management
(4) - Local
This option will only install components required for local configuration
(5) - Server
This option will only install components required for remote server management
(6) - Complete upgrade
This option will only upgrade Complete msm
(7) - Client upgrade
This option will only upgrade Client msm
(8) - Standalone upgrade
This option will only upgrade Standalone msm
(9) - Local upgrade
This option will only upgrade Local msm
(10)- Server upgrade
This option will only upgrade Server msm
(11) - upgrade only
This option will only upgrade msm
Note : Installer can also be run in a command line mode
Usage : install.sh [-option]
The options are :
a
The Complete Installation of MegaRAID Storage Manager (MSM)
c
The Client components only program of MSM
s
The StandAlone component of MSM
l
The Local component of MSM
d
The Sever component of MSM
au
The upgrade only option for Complete MSM
cu
The upgrade only option for Client only MSM
su
The upgrade only option for Standalone MSM
lu
The upgrade only option for Local MSM
du
The upgrade only option for Server MSM
u
The upgrade only option for MSM
Setup Type :1
Enter The SelfSigned Key Details :
Enter 1 for 1024 key size
Enter 2 for 2048 key size
Both the MSM client and server need to have the same RSA key size enabled to be able to communicate with each other.
- 2048 bit keys should be selected for more secure network communication
- 1024 bit keys should be used with MSM clients still using 1024 bit keys
For more details please see the MSM software Users Guide.
Enter the key size:(1 or 2)
2
Configure Range of Events to Generate Alert Notifications.
Please make a selection to configure MSM range of events used to generate alert notifications:(Default 3)
Enter 1 Since Last Reboot
MSM will generate alerts using events since last reboot.
Note: If user selects option Last reboot then in property file EVENT_NOTIFICATION_CHOICE=reboot will
be selected. Based on this MSM retrieves events from session boot seqNo to Newest seqNo.
Enter 2 Since Log Clear
MSM will generate alerts from events since last log clear.
Note: If user selects option Last reboot then in property file EVENT_NOTIFICATION_CHOICE=clear will
be selected. Based on this MSM retrieves events from last log clear seqNo to Newest seqNo.
Enter 3 Since Last Shutdown
MSM will generate alerts from events since last clean shutdown.
Note: If user selects option Last reboot then in property file EVENT_NOTIFICATION_CHOICE=shutdown will
be selected. Based on this MSM retrieves events from last clean shutdown seqNo to Newest seqNo.echo Enter the choice:(1 or 2 or 3)
3
Starting complete installation of MegaRAID Storage Manager 17.05.01-00....
Checking for any Old Version
No Old Version Found
Continuing with installation
Preparing... ################################# [100%]
Installing....
Updating / installing...
1:Lib_Utils2-1.00-08 ################################# [100%]
Installing MegaRAID_Storage_Manager-17.05.01-00
Preparing... ################################# [100%]
Installing....
Updating / installing...
1:MegaRAID_Storage_Manager-17.05.01################################# [100%]
/
/
/
/etc/X11/xinit/xinitrc.d
/root/UL_Avago_MSM_17.05.01.00_linux/disk
Installing sas_snmp-17.05-0003
Preparing... ################################# [100%]
Updating / installing...
1:sas_snmp-17.05-0003 ################################# [100%]
/etc/snmp/snmpd.conf file not found. Please check the filepath
Exiting .....
warning: %post(sas_snmp-17.05-0003.x86_64) scriptlet failed, exit status 1
Installing sas_ir_snmp-17.05-0003
Preparing... ################################# [100%]
Updating / installing...
1:sas_ir_snmp-17.05-0003 ################################# [100%]
/etc/snmp/snmpd.conf file not found. Please check the filepath
Exiting .....
warning: %post(sas_ir_snmp-17.05-0003.x86_64) scriptlet failed, exit status 1
위와 같이 에러 뜨긴 했는데 정상적으로 구동이 된다.
프로그램 구동은
# cd /usr/local/MegaRAID\ Storage\ Manager/
# ./startupui.sh

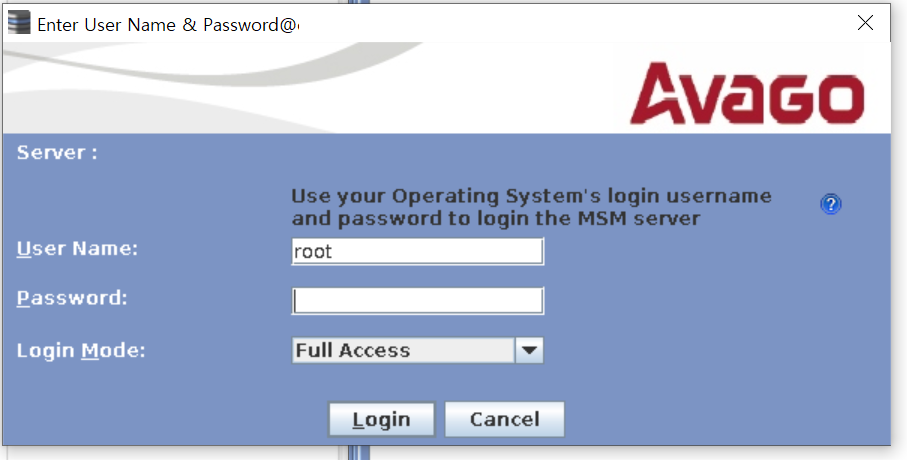

로그인 화면 뜨고 로그인 하면
위 화면 처럼 뜨고

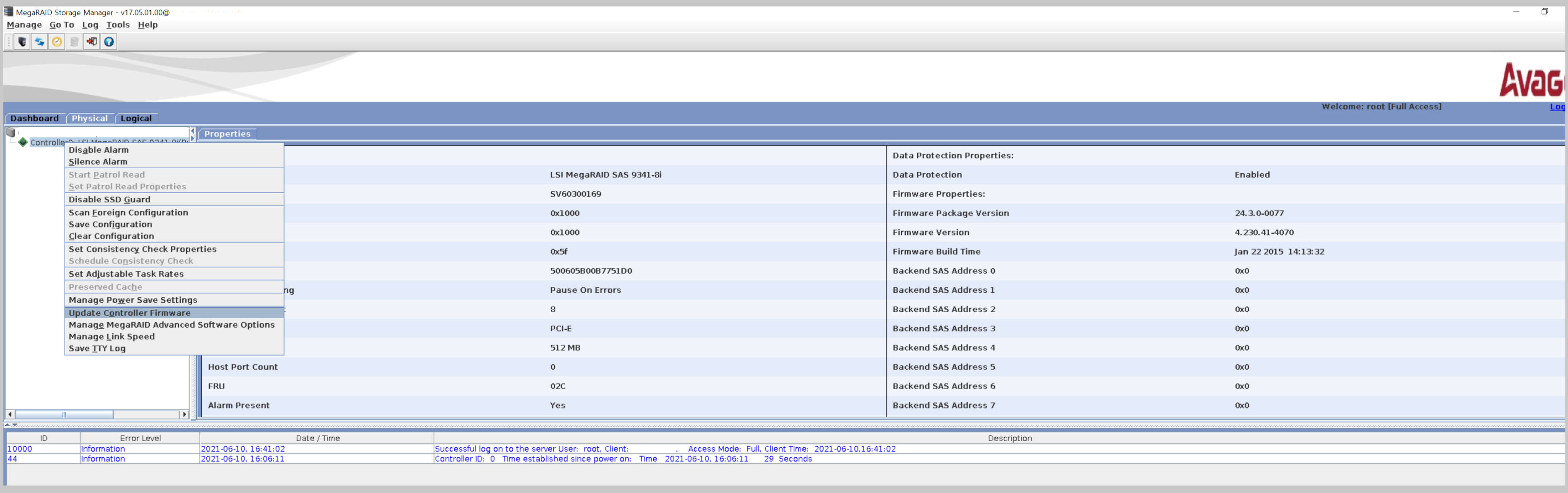

physical 탭에 아래 컨트롤러 선택 후 마우스 오른쪽 버튼 눌러 보면 아래 메뉴에 펌웨어 업그레이드 가능한 메뉴가 뜬다.
펌웨어는
https://www.broadcom.com/products/storage/raid-controllers/megaraid-sas-9341-8i
MegaRAID SAS 9341-8i
Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That's where the MegaRAID SAS 9341-8i 12Gb/s SAS and SATA RAID controller card can add real value.
www.broadcom.com
브로드 컴 페이지에 있으니 다운 미리 받아 놓고

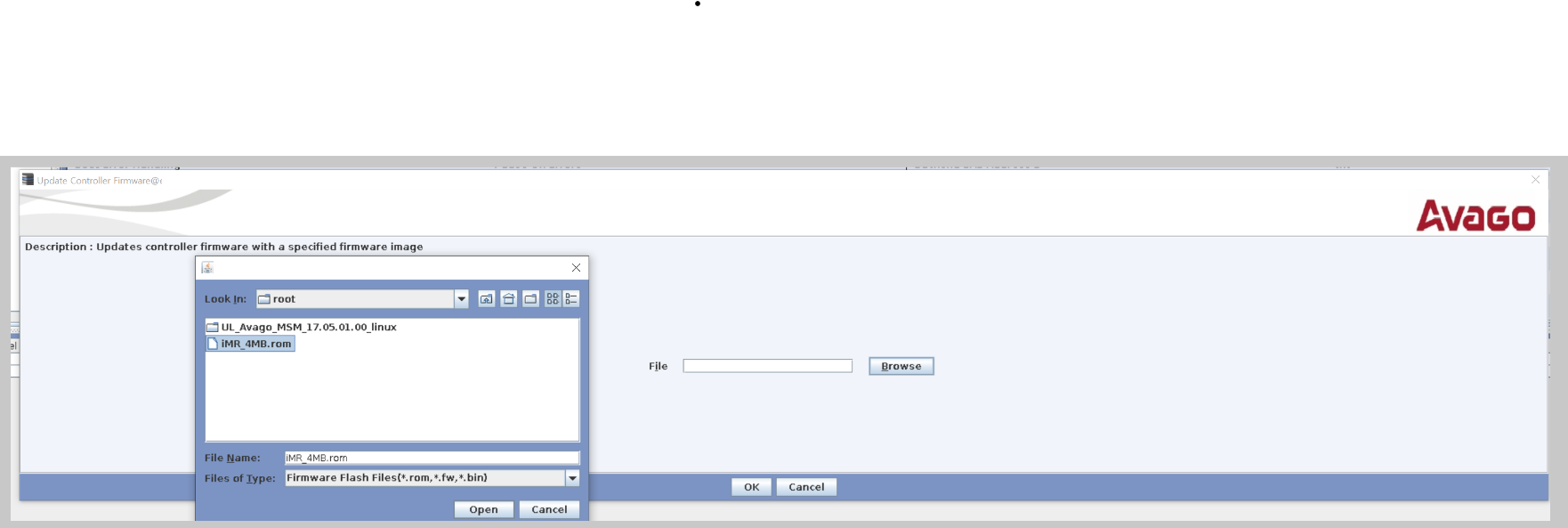

위 사이트에서 파일 다운 받고 압축 풀으면 ~.rom 파일이 나온다 이파일 넣으면 된다.

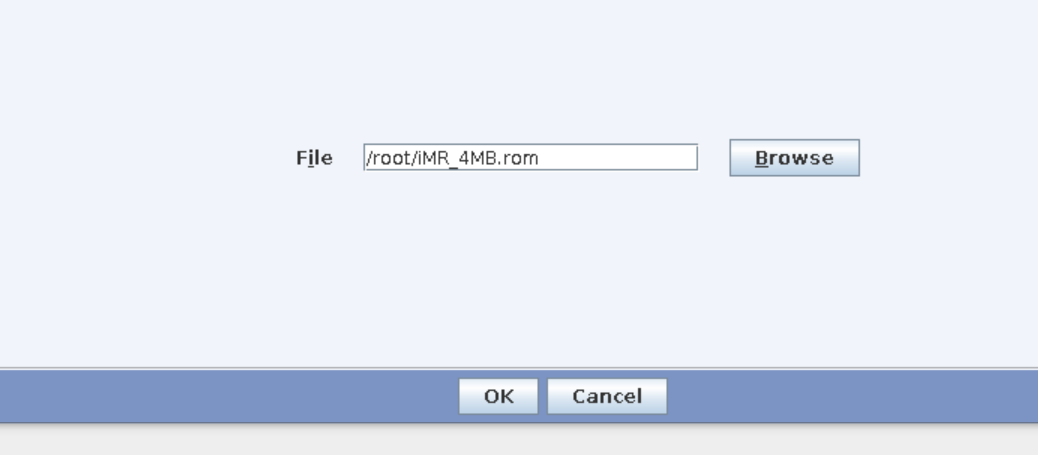

파일 넣고 OK

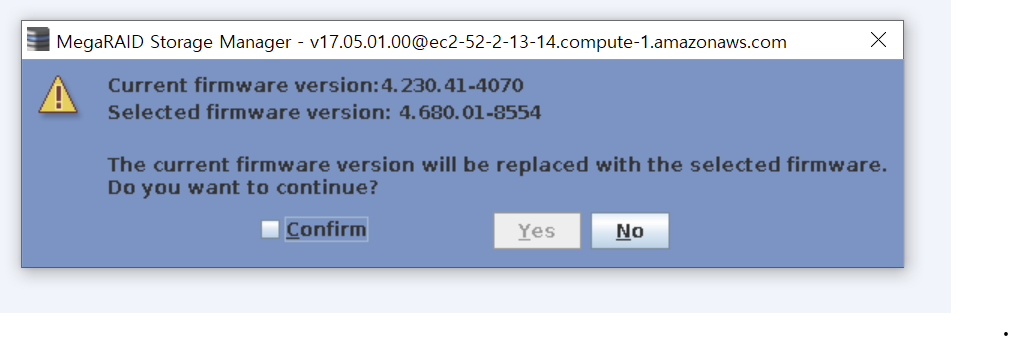

기존 버전에서 새로운 버전으로 올리겠다 라는 경고 창이 뜬다 확인 후 Yes 눌러 준다.
참고로 예전 LSI 인텔 레이드 할때도 비슷하긴 했는데 펌웨어 버전이 최신 버전으로 바로 업그레이드가 안되니 중간 버전을 먼저 올리고 최신 버전으로 올리자.

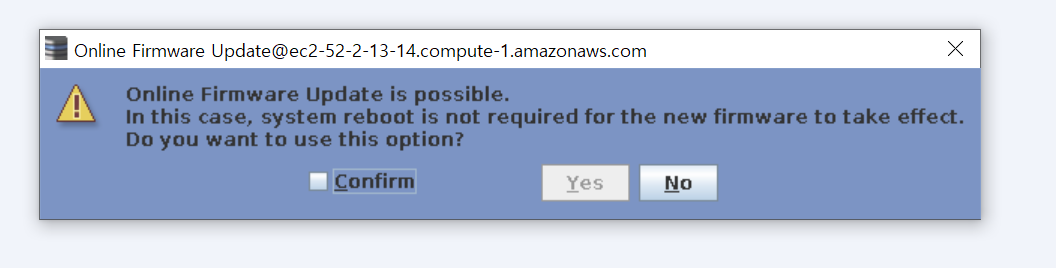

두번째 경고이다.
온라인 업데이트 가능 하고 재부팅 필요 없다 옵션 선택 할거냐? 뭐... 잘 모르겠지만 확인 후 Yes

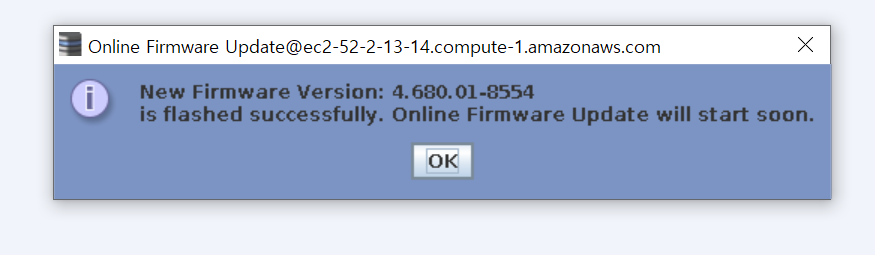

생각보다 금방 끝났다.
인텔 레이드는 오래 걸렸던거 같은데..

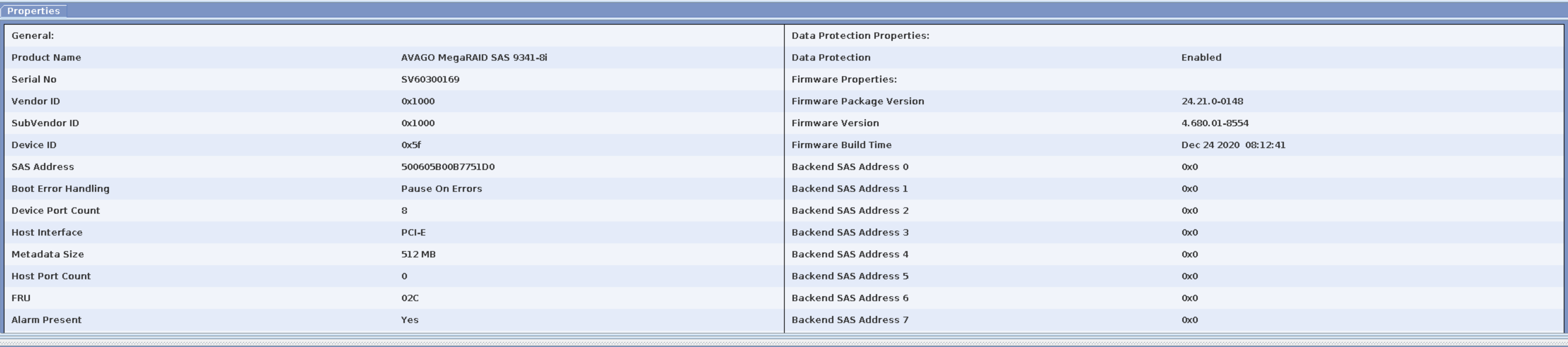

짜잔 펌웨어 버전 업데이트 된것을 확인 할 수 있다.
